Mechanical Guide: Learn How to Make an Oil Change on a Widescape WS250

Like any vehicle, the Widescape requires a minimum of maintenance to ensure its performance and durability. Among the essential tasks, the oil change is recommended every 30 hours of use. This simple but crucial operation ensures the longevity of the engine and its proper functioning. By performing this maintenance regularly, you will avoid premature wear of internal components and optimize the performance of your Widescape. Additionally, a well-maintained engine consumes less fuel and operates more smoothly, improving your driving experience. Don’t forget to also check other fluids and mechanical parts for complete and effective maintenance.

It’s important to perform maintenance work while knowing your limits. If you have questions or doubts, don’t hesitate to seek advice from your nearest dealer. They are there to help you and ensure your vehicle is properly maintained.

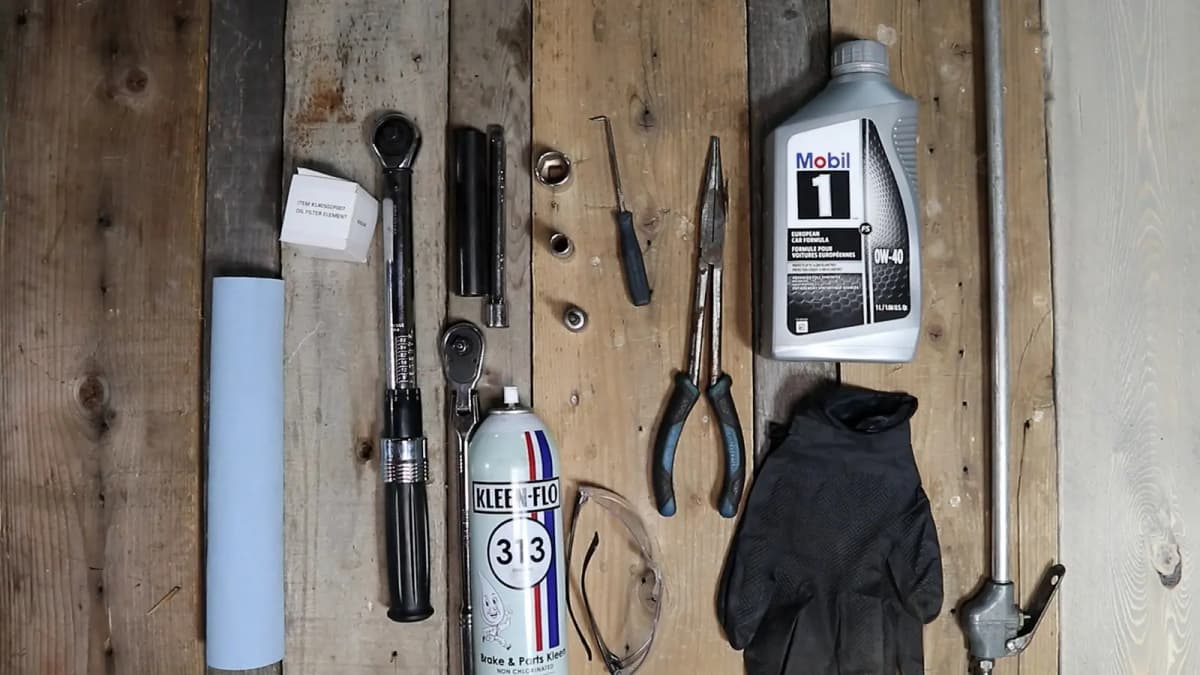

Materials and Tools Needed for the Oil Change on Your Widescape WS250

• Synthetic engine oil 0W40
• New oil filter with its O-ring
• Long needle-nose pliers
• Torque wrench
• Hex key #4
• Ratchet wrench
• 10 mm socket
• 19 mm socket
• 6-inch extension or longer
• 19 × 130 mm tube
• Funnel
• Hook
• Used oil container
• Brake parts cleaner
• Rag

Procedure

Position and Prepare Your Widescape for Maintenance.

1. To work safely, ensure your vehicle is stable. Also, make sure it is on a flat surface.

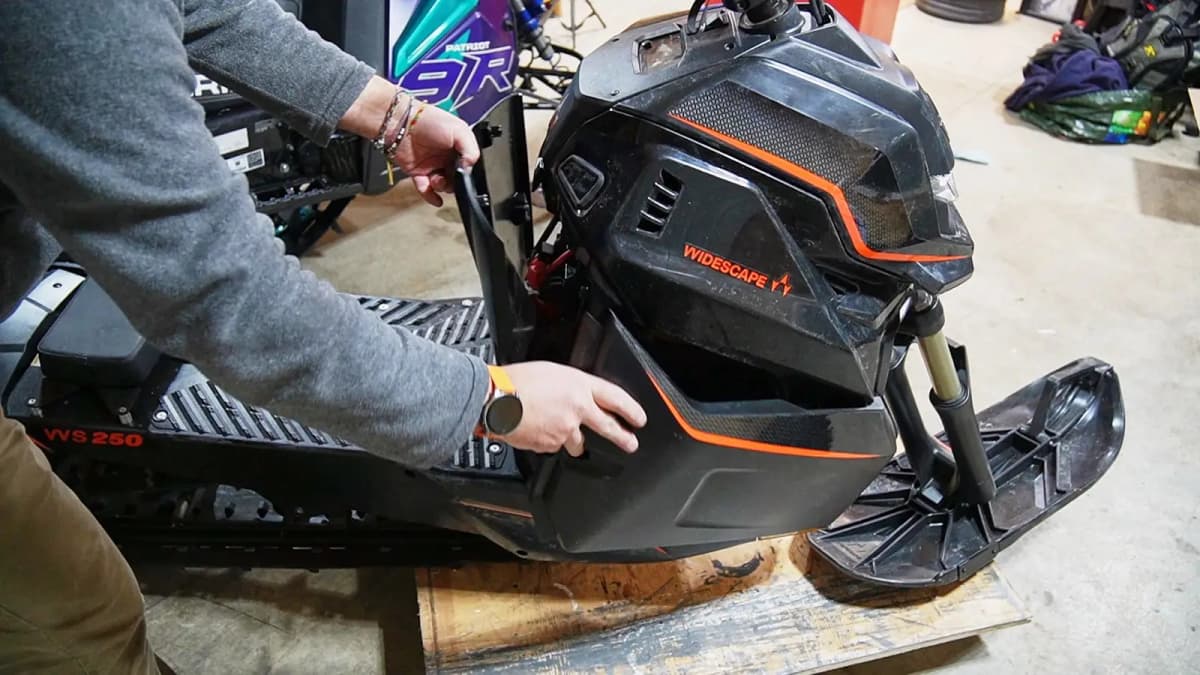

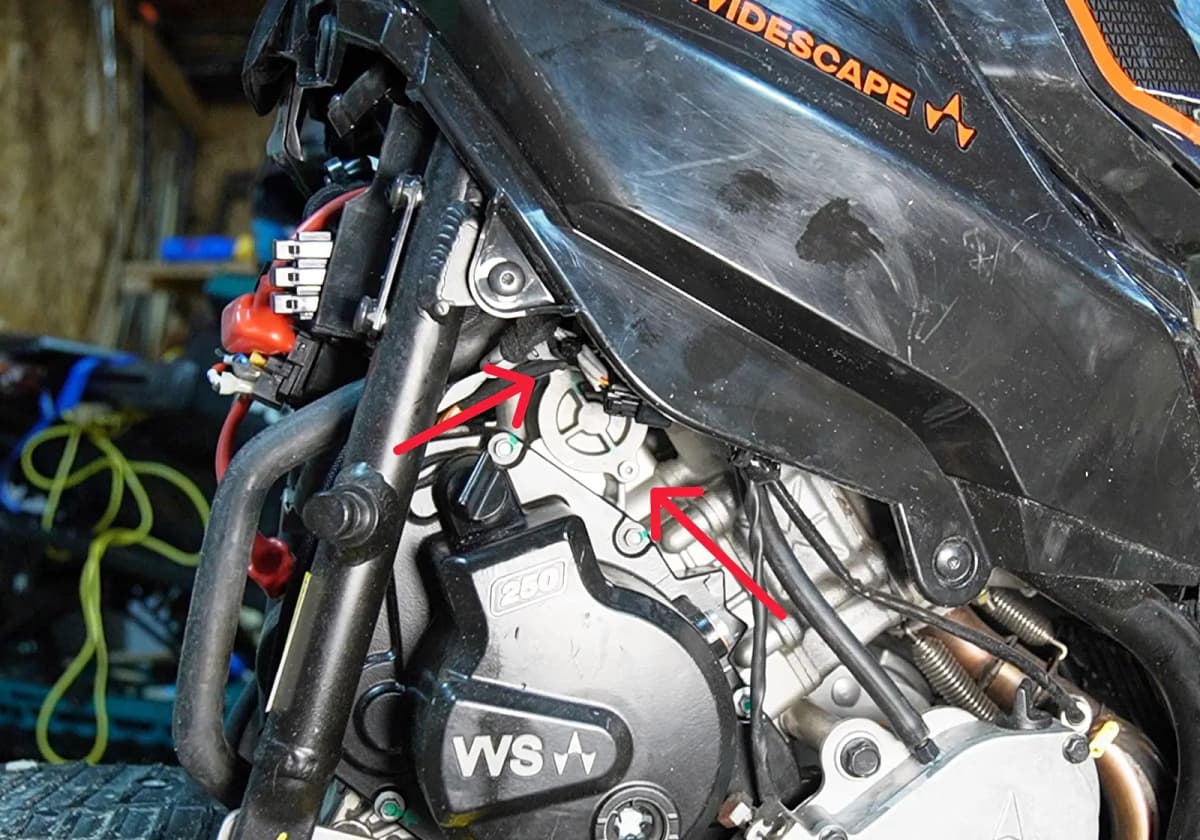

2. Start by removing the quick-access panels located on the left and right. This will give you access to the oil filter, the fill plug, and the drain plug on the right side.

3. As for the oil strainer, it is located on the left side, under the drive belt. By removing these panels, you will have full access to perform the necessary maintenance.
4. Place the drain pan under the engine on the right side to collect the used oil.

Oil Drain and Oil Filter Replacement

Tools Required

• 19 × 130 mm tube

• Ratchet wrench

• 6-inch extension or longer

• 10 mm socket

• Hex key #4

• New oil filter

• Torque wrench

• O-ring hook

• Used oil container

Instructions

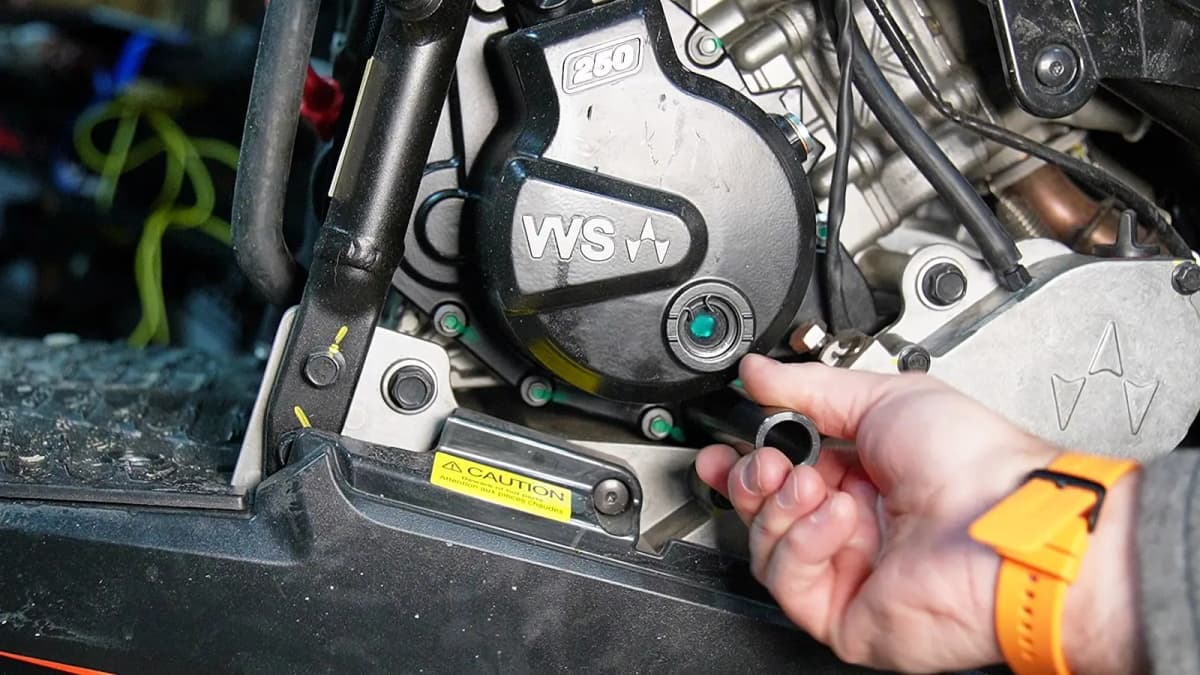

1. Place the drain tube around the drain plug, then place your drain pan under the tube.

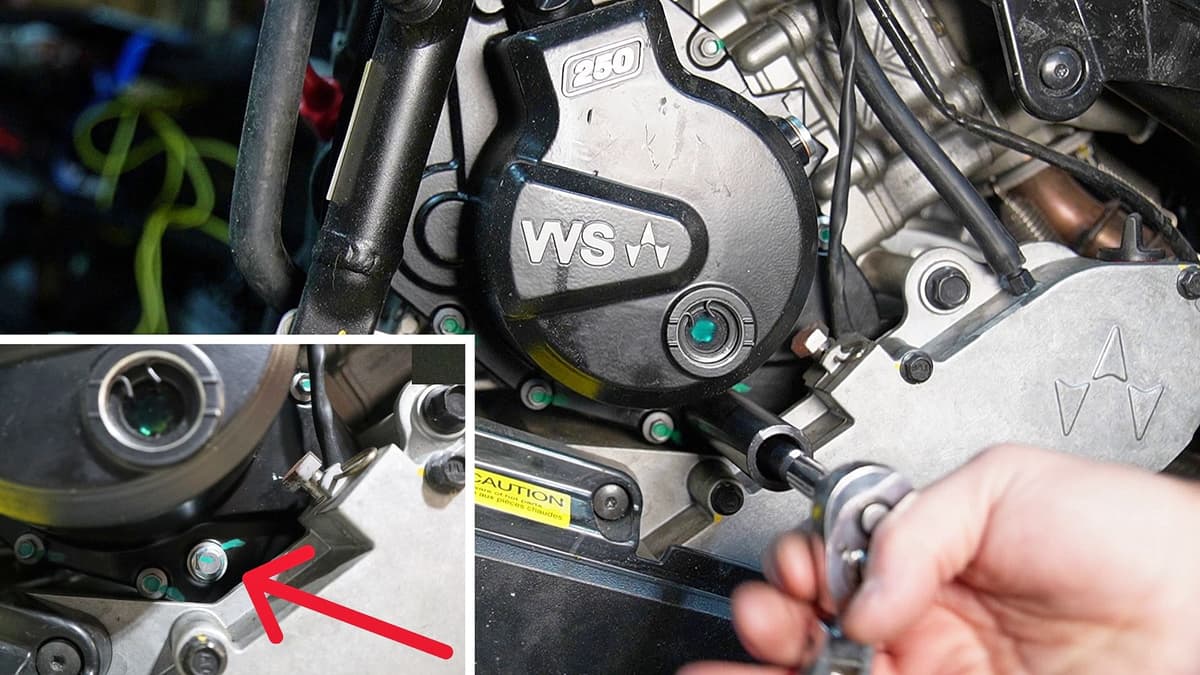

2. Use a 10 mm socket, an extension, and a ratchet wrench to remove the drain plug.

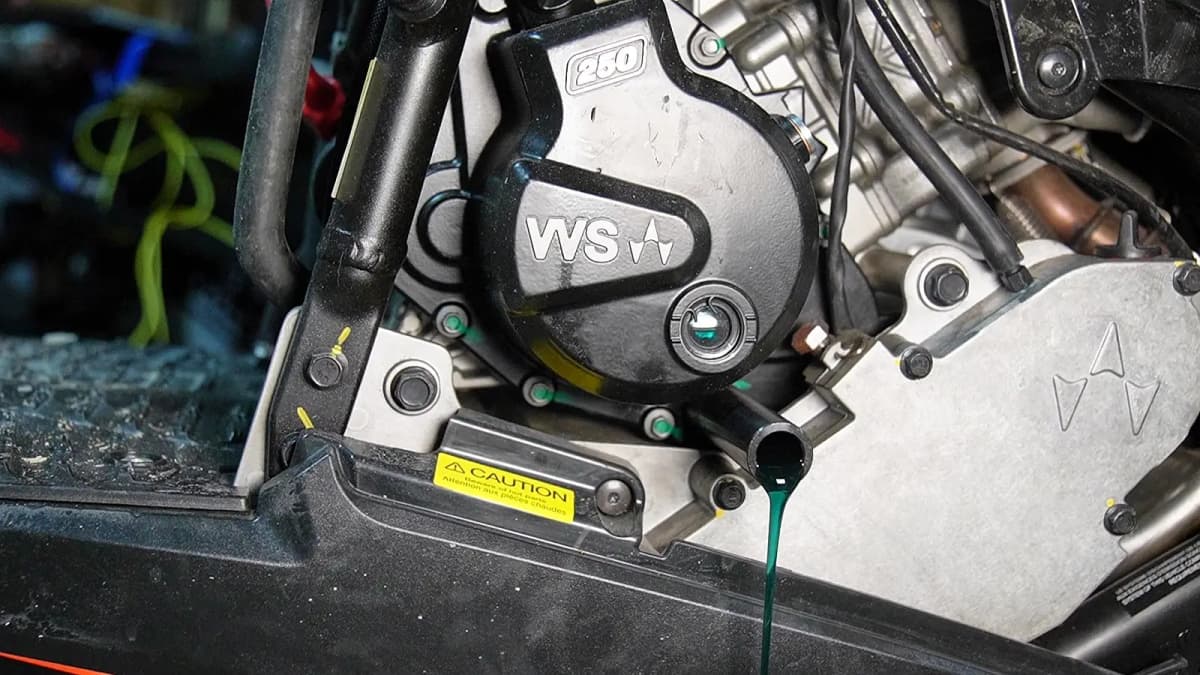

3. Let the oil drain.


4. Reinstall the plug and tighten it to a torque of 12 N·m (newton metres) using the torque wrench.
5. Remove the two 4 mm hex screws from the oil filter cover.

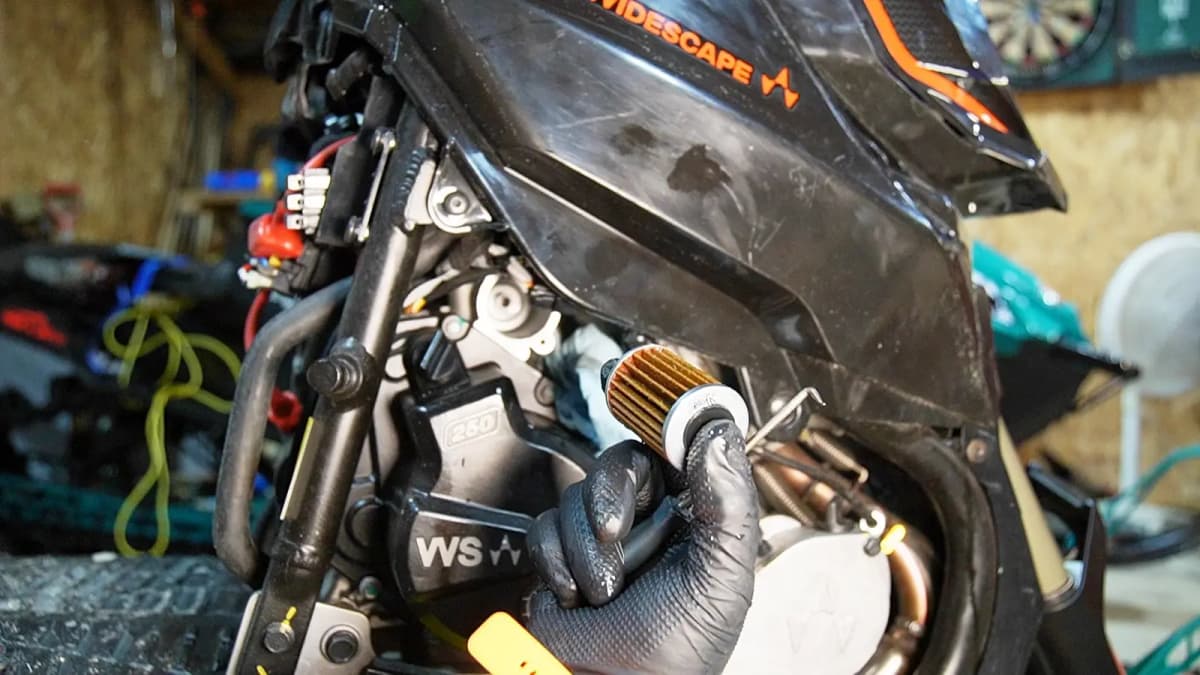

6. Use an O-ring hook to remove the oil filter.


7. Replace the filter with a new one and change the cover’s O-ring if possible.
8. Reinstall the filter cover and tighten the two hex screws to 6 N·m using the torque wrench and the 4 mm hex key.

Cleaning the Oil Strainer.

Tools Required

• 19 mm socket

• 6-inch extension or longer

• Ratchet wrench

• Long needle-nose pliers

• Torque wrench

• Brake parts cleaner

• Compressed air from a compressor (extra recommendation)

Instructions

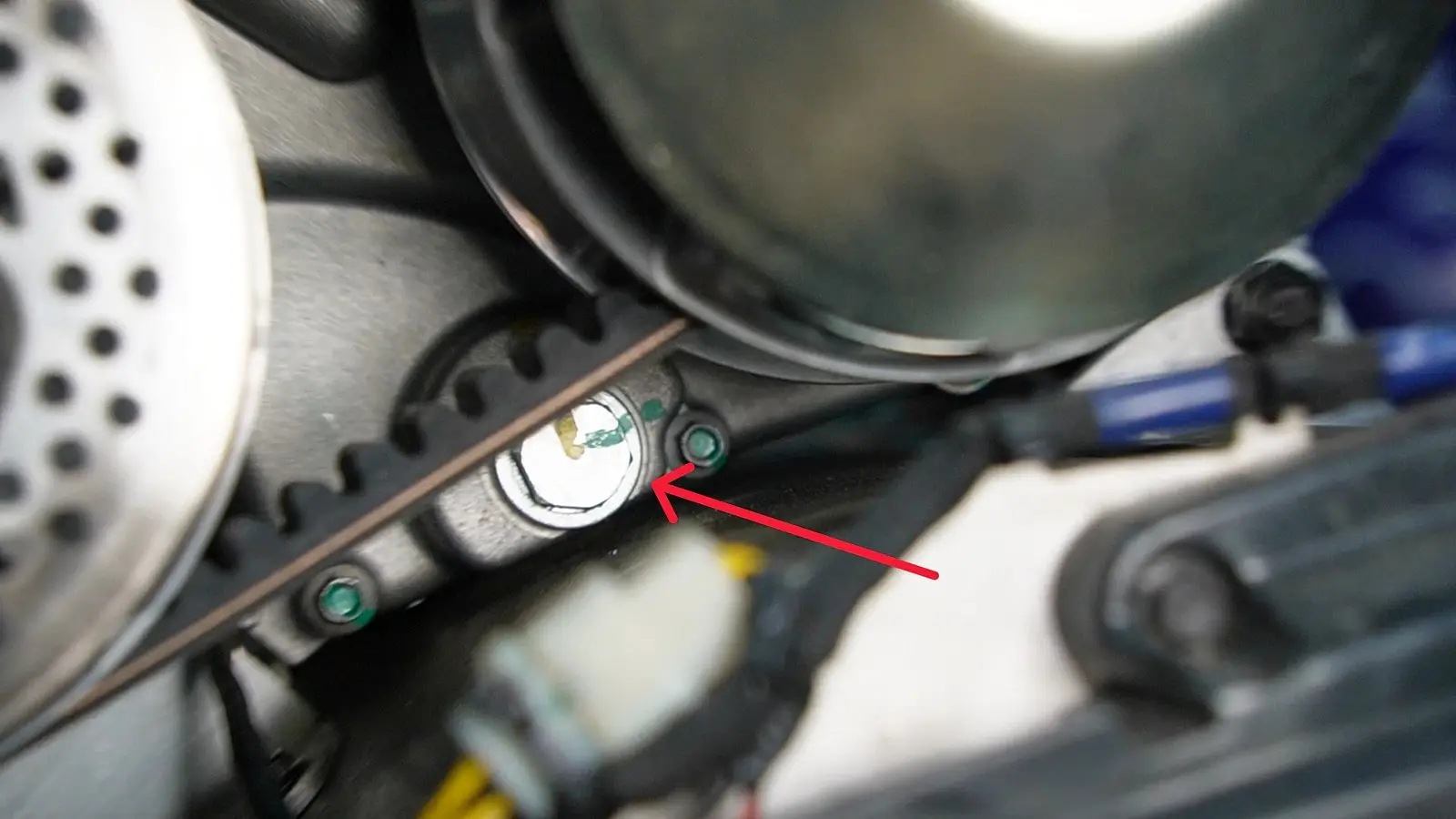

1. Position yourself on the left side, under the drive belt, and locate the oil strainer plug. It is crucial to keep the oil level low to avoid damage when removing the strainer.

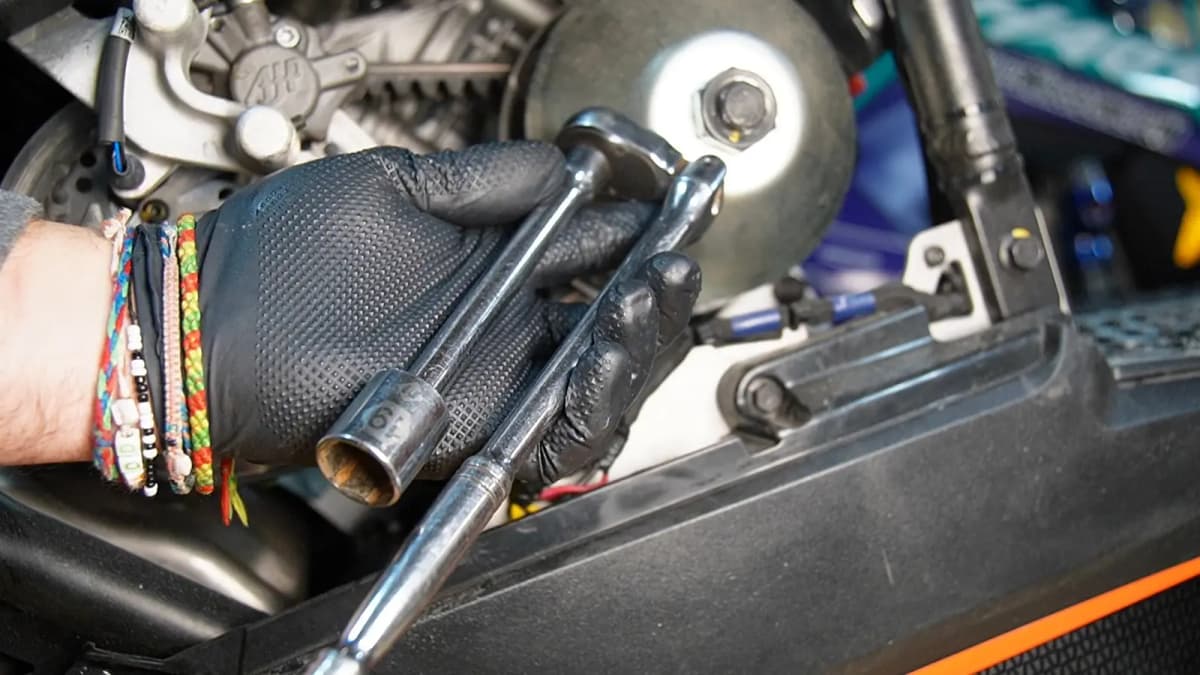

2. Use a 19 mm socket, an extension, and a ratchet wrench to remove the plug.

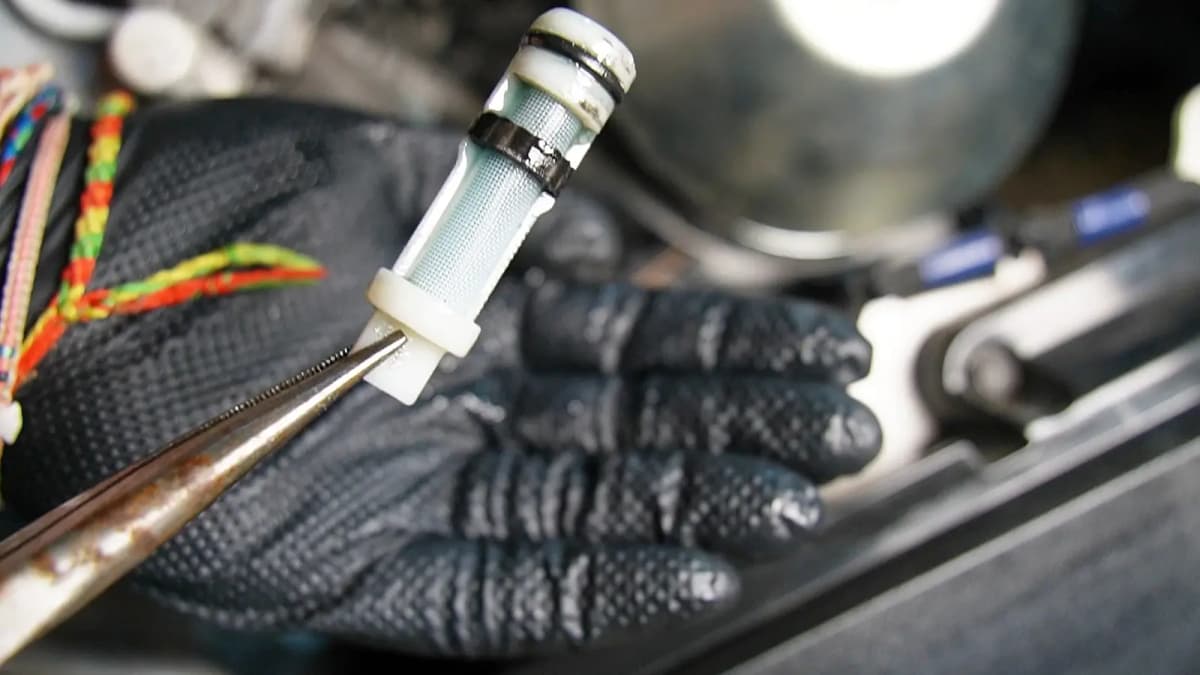

3. Use a pair of long needle-nose pliers to remove the strainer.
4. Apply brake parts cleaner to clean the strainer..


5. Dry it using compressed air (optional but recommended).
6. Reinstall the strainer using the long pliers.
7. Reinstall the plug using the 19 mm socket, extension, and ratchet wrench. Tighten to 15 N·m with the torque wrench.

Adding New Oil

Using synthetic oil in sports engines during winter offers several significant advantages.

Excellent Low-Temperature Performance

Synthetic oil maintains its fluidity even at extremely low temperatures, allowing for easier engine starts and better protection from the beginning.

Wear Protection

Thanks to its advanced chemical composition, synthetic oil offers superior protection against engine component wear, extending the engine’s lifespan.

Thermal Stability

It resists temperature variations better, which is crucial for sports engines. Indeed, these engines can quickly go from very low to very high temperatures.

Reduced Deposits

Synthetic oil is less likely to form deposits and sludge, keeping the engine clean and performing well.

Extended Oil Change Intervals

Due to its durability, synthetic oil requires less frequent changes, which can be more convenient and economical in the long run.

In summary, synthetic oil is a wise choice for sports engines in winter, offering optimal protection and performance in harsh conditions.

Materials Required

• Synthetic engine oil 0W40

• Funnel

• Brake parts cleaner

• Rag

Instructions

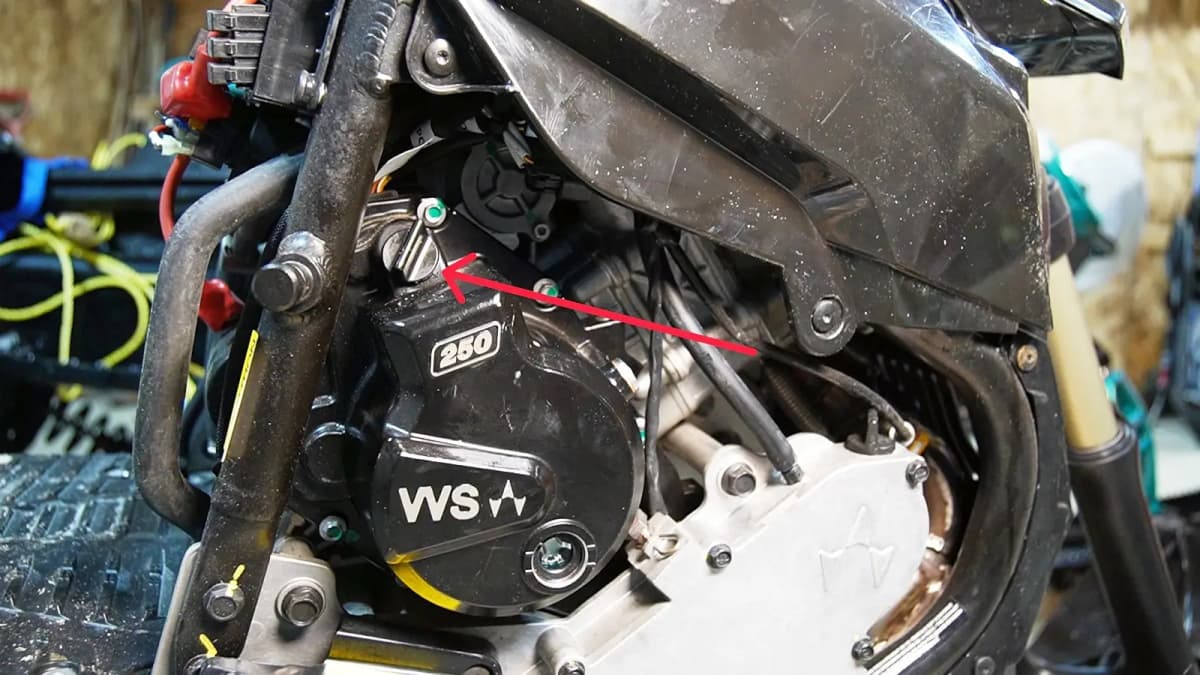

1. Locate the plug on the right side and remove it.


2. Using a funnel to minimize spills, add between 900 ml and 1,100 ml of synthetic oil.

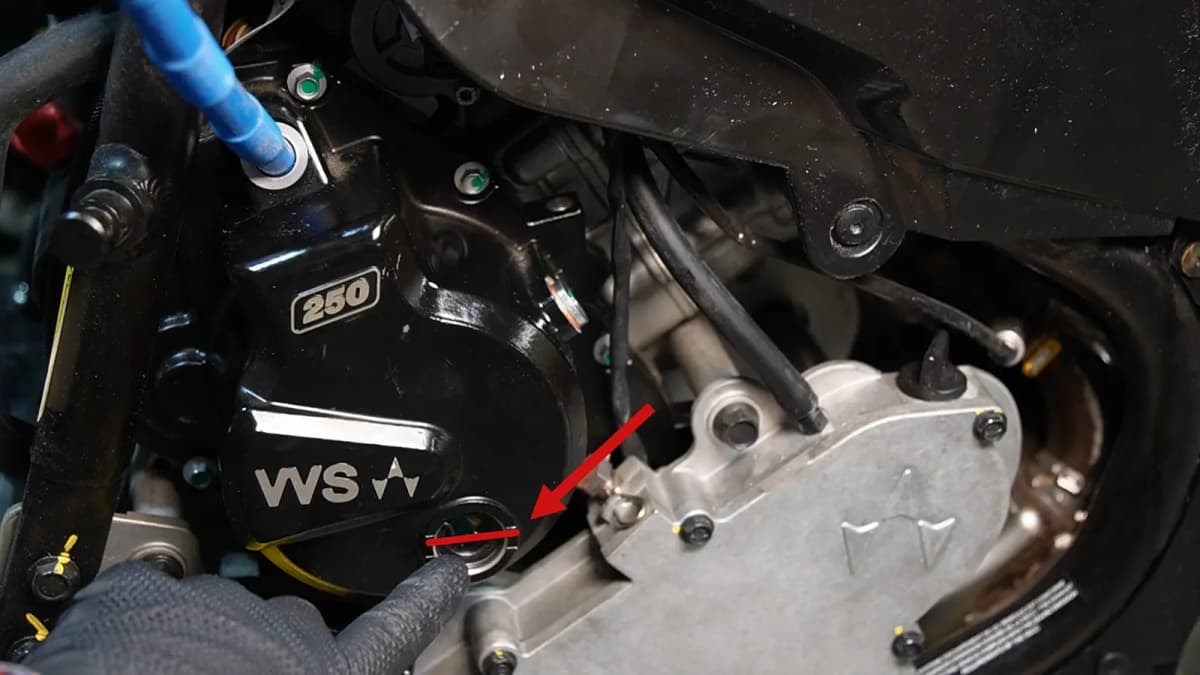

3. Refer to the level indicator on the side of the engine to guide you.

   Reinstall the plug and tighten it by hand.
4. Apply a small amount of brake cleaner and clean the surfaces.

Note: Remember to dispose of used oil and filters according to local regulations.

Conclusion Title

In summary, regular maintenance of your Widescape, particularly the oil change, is essential to ensure its performance and durability. By following this complete mechanical guide and using the appropriate tools, you can perform this maintenance yourself. However, don’t hesitate to consult your dealer in case of doubt or difficulty. Proper maintenance extends the life of your vehicle but also improves your driving experience by ensuring optimal operation and reduced fuel consumption. Take care of your Widescape, and it will take care of you.

Thanks to Widescape for lending a WS250 for the creation of this mechanical guide.
